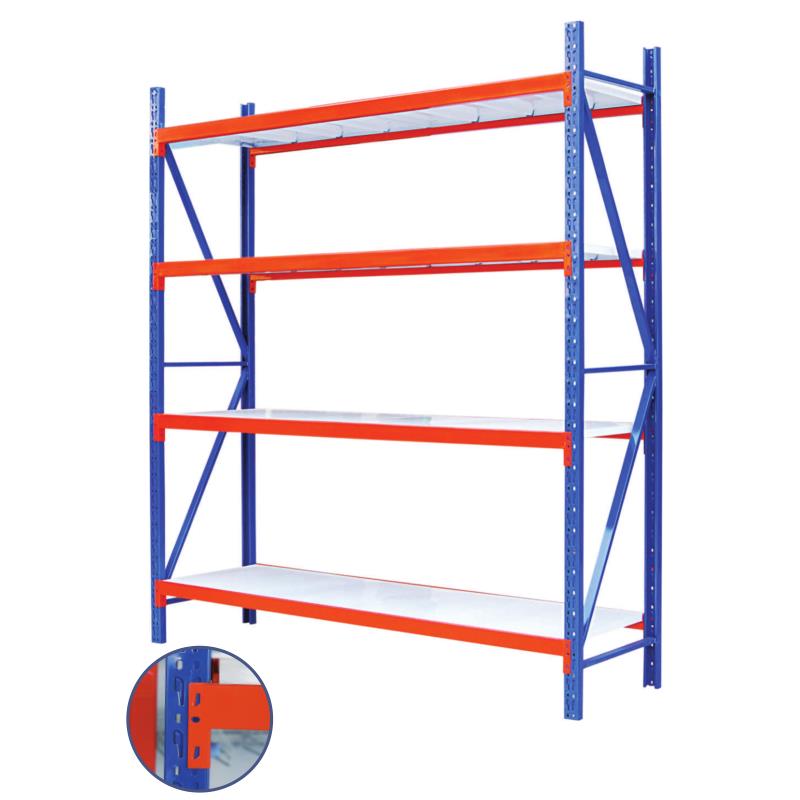

Light-duty Warehouse Rack

ITEM NO. : YD-S030
SPECIFICATION: L1800/1500*W500*H2000mm (Acceptable of required size)
Layers: 4
Main material thickness: Post 1.0mm/Beam 1.0mm/Layer board 0.5mm
Load-bearing: 100-200kg/layer

Light-duty warehouse rack are also called light-weight shelves and angle steel shelves. Light-duty shelves are made of high-quality cold plate (SPCC) and Q195 steel. It is composed of steel laminates and universal angle steel profiles through angle codes and special bolts. It has a beautiful appearance, easy assembly, and the steel laminate can be adjusted up and down at a distance of 55mm. Light-duty storage racks are composed of three parts: uprights, beams and laminates. The column is cold-rolled and formed by high-quality steel plate and punched by a lathe. The common hole type is butterfly hole; the beam is made of P-shaped steel, and the two ends are welded with pendants, also called column clamps, to connect the column; the laminate is steel plate edge welding There are three to four reinforcing ribs welded underneath, and the height of the laminate can be adjusted freely in multiples of 50mm.

Multiple groups of light shelves can be connected to increase the overall stability of the shelves and other characteristics:

1. The light shelves have beautiful appearance, easy assembly, and the steel laminates can be adjusted up and down at a distance of 55mm. Multiple groups of light shelves can be connected to increase the overall stability of the shelves.

2. The light-duty rack laminates are welded with reinforcing ribs, and the layer load capacity is large. The maximum load capacity of each layer under the relative length can reach 200kg/layer.

3. The top and bottom layers of the light-duty shelf are connected by corners and bolts to the uprights, which are safe and stable. The middle layer is connected with the layer by special pins, which is simple and convenient, and can be adjusted at will.

4. The surface treatment of the light shelf adopts shot blasting surface derusting and degreasing, and electrostatic powder spraying treatment, which can be sprayed according to the color specified by the customer. It has the advantages of beautiful color, not easy to oxidize, and easy to clean.

5. Light-duty shelves are widely used in enterprise warehouses, supermarkets and institutions. At the same time, this product has reached the same level of products in developed countries.

6. Light-duty racks can also be equipped with anti-static facilities on the laminates, which can be made into anti-static racks, which are now widely used in electronics companies.

7. Light-duty shelves in the same direction can also be connected by bolts to form a whole shelf. Light-duty storage racks have a wide range of uses, suitable for lighter workplaces such as small parts and accessories. Each floor can carry more than 100-150kg. It is mainly manpower, manual handling, storage and picking operations.
